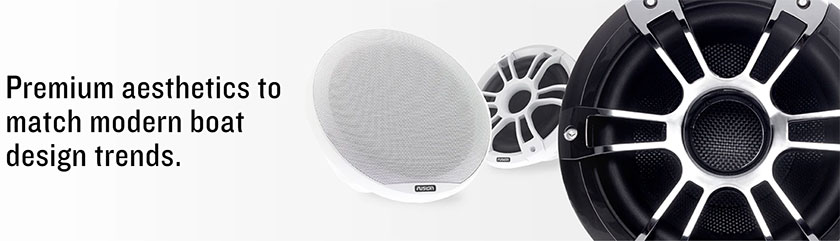

10" 600-Watt - Sport White Marine Marine Subwoofer - SG-SL102SPW - 010-02435-10 - Fusion

Qty

10" 600-Watt - Sport White Marine Marine Subwoofer - SG-SL102SPW - 010-02435-10 - Fusion:

IN THE BOX:

> One subwoofer (based on what you select)

> Documentation

Fusion Electronics
LED Load Current at 14.4 Vdc	300 mA (sports-style only)
LED Supply Voltage	10.8-16 VDC (sports-style only)
Mounting Depth Clearance	5.24″ (133 mm)
Mounting Diameter Clearance	8.78″ (223 mm)
Peak Power (Watts)	600 W
Warranty	3 years
Optimum enclosure recommendations
Port diameter	4″ (104 mm)
Port length	10.43″ (265 mm)
Ported vented enclosure volume (lined with absorption material)	1.6 cubic ft (45 L)
Sealed enclosure volume (fully filled with absorption material)	0.6 cubic ft (17.2 L)
Product Specifications
Cone Material	Polypropylene cone with rubber surround
Nominal Impedance	4 ohms
Recommended Amplifier Power (RMS)	50-600 W
Speaker Size	10"
Voice Coil Diameter	2″
Physical & Performance
Compass-safe Distance	205″ (520 cm)
GENERAL

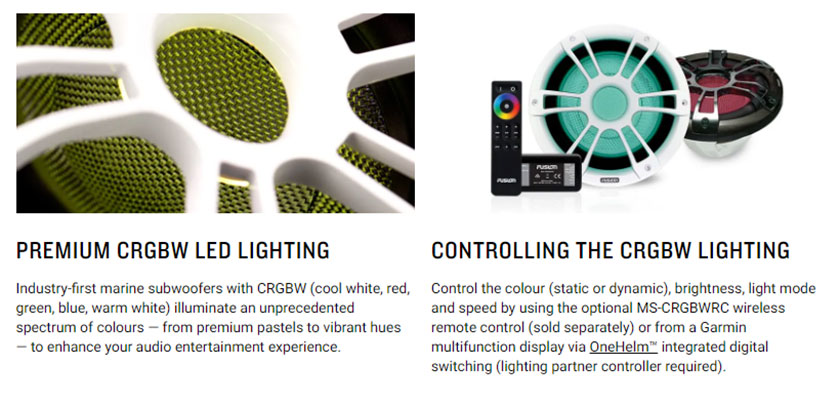

LED lighting	Yes - CRGBW (sports-style only)
Operating temperature range	32° to 122° F (0° to 50° C)
Physical dimensions	10″ Sports: 10.83″ x 6.77" (275 x 172 mm)
Sensitivity	Sensitivity (1 W / 1 m): 86 dB
Water and dust rating	IP65
